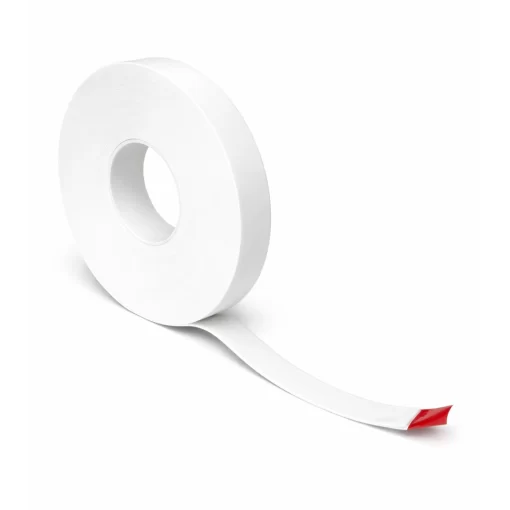

Double Sided White PE Foam Tape

Double Sided White PE Foam Tape

SKU N/A Category

Price range: $130.97 through $243.96 per case

The SB116W and SB132W are double-coated, white closed-cell polyethylene foam tapes featuring high-performance rubber-resin adhesives designed for bonding irregular surfaces and gap filling. While both offer excellent immediate bond strength and conformability, the SB116W provides a thicker 1/16” carrier with cushioning and vibration dampening, whereas the SB132W offers a thinner 1/32” profile with exceptionally high tack.

SKU N/A Category

Description

SB116W

Product Summary

  • The SB116W is a 1/16” white, closed-cell cross-linked polyethylene foam coated on both sides with a high performance rubber-resin pressure sensitive adhesive.
  • It is covered with a bleach densified kraft release liner.

Features and Benefits

  • Conformable to uneven surfaces/gap filling
  • Cushioning and vibration dampening
  • High immediate bond strength
  • Excellent chemical resistance
  • Low compression set
  • Easily die-cut

Applications

  • Bonding of two irregular surfaces that require gap filling
  • Plastic extrusions
  • Signage
  • Wire raceways
  • Wire mounts
  • Trim

Product Specs

  • 180° Peel Adhesion: 125 oz/inch | 34 N/25 mm
  • Tack: 34 oz/inch | 975 g/25 mm
  • Tensile Strength: 107 oz/inch | 11.6 N/10 mm
  • Minimum Application Temperature: 50°F | 10°C
  • Service Temperature: 32–155°F | 0–68°C
  • Maximum Short Term Exposure: 203°F | 95°C

SB132W

Product Summary

  • The SB132W is a 1/32” white, closed-cell cross-linked polyethylene foam coated on both sides with a rubber resin pressure sensitive adhesive.
  • It is covered with a white densified kraft release liner.

Features and Benefits

  • Conformable to uneven surfaces/gap filling
  • Very high immediate bond strength
  • Bonds well to irregular surfaces

Applications

  • Bonding of two irregular surfaces that require gap filling

Product Specs

  • 180° Peel Adhesion: 110 oz/inch | 31 N/25 mm
  • Shear Adhesion: 2.0 @ 2.2 psi hours | 2.0 @ 15.2 kPa hours
  • Tack: 980 oz/inch | 270 N/25 mm
  • Dynamic Shear: 65 @ 1 min psi | 448 @ 1 min kPa
  • Application Temperature: 60–120°F | 16–49°C
  • Service Temperature: 0–150°F | -18–65°C

Product Construction

  • Rubber Resin PSA
  • 1/32” White PE Foam
  • Rubber Resin PSA
  • Kraft Paper Release Liner

Additional information

Weight N/A
Size

1/32", 1/2" x 216 FT, 24 rolls per case, 1/32", 3/4" x 216 FT, 16 rolls per case, 1/32", 1" x 216 FT, 12 rolls per case, 1/16", 1/2" x 108 FT, 24 rolls per case, 1/16", 3/4" x 108 FT, 16 rolls per case, 1/16", 1" x 108 FT, 12 rolls per case

Description

SB116W

Product Summary

  • The SB116W is a 1/16” white, closed-cell cross-linked polyethylene foam coated on both sides with a high performance rubber-resin pressure sensitive adhesive.
  • It is covered with a bleach densified kraft release liner.

Features and Benefits

  • Conformable to uneven surfaces/gap filling
  • Cushioning and vibration dampening
  • High immediate bond strength
  • Excellent chemical resistance
  • Low compression set
  • Easily die-cut

Applications

  • Bonding of two irregular surfaces that require gap filling
  • Plastic extrusions
  • Signage
  • Wire raceways
  • Wire mounts
  • Trim

Product Specs

  • 180° Peel Adhesion: 125 oz/inch | 34 N/25 mm
  • Tack: 34 oz/inch | 975 g/25 mm
  • Tensile Strength: 107 oz/inch | 11.6 N/10 mm
  • Minimum Application Temperature: 50°F | 10°C
  • Service Temperature: 32–155°F | 0–68°C
  • Maximum Short Term Exposure: 203°F | 95°C

SB132W

Product Summary

  • The SB132W is a 1/32” white, closed-cell cross-linked polyethylene foam coated on both sides with a rubber resin pressure sensitive adhesive.
  • It is covered with a white densified kraft release liner.

Features and Benefits

  • Conformable to uneven surfaces/gap filling
  • Very high immediate bond strength
  • Bonds well to irregular surfaces

Applications

  • Bonding of two irregular surfaces that require gap filling

Product Specs

  • 180° Peel Adhesion: 110 oz/inch | 31 N/25 mm
  • Shear Adhesion: 2.0 @ 2.2 psi hours | 2.0 @ 15.2 kPa hours
  • Tack: 980 oz/inch | 270 N/25 mm
  • Dynamic Shear: 65 @ 1 min psi | 448 @ 1 min kPa
  • Application Temperature: 60–120°F | 16–49°C
  • Service Temperature: 0–150°F | -18–65°C

Product Construction

  • Rubber Resin PSA
  • 1/32” White PE Foam
  • Rubber Resin PSA
  • Kraft Paper Release Liner

Additional information

Weight N/A
Size

1/32", 1/2" x 216 FT, 24 rolls per case, 1/32", 3/4" x 216 FT, 16 rolls per case, 1/32", 1" x 216 FT, 12 rolls per case, 1/16", 1/2" x 108 FT, 24 rolls per case, 1/16", 3/4" x 108 FT, 16 rolls per case, 1/16", 1" x 108 FT, 12 rolls per case
